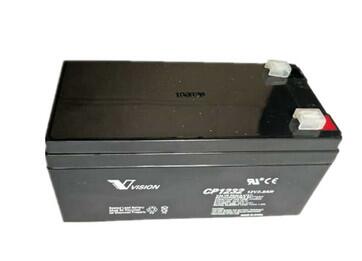

威神蓄电池CP1232安装尺寸 参数

VISION威神蓄电池CP1232 12V3.2Ah使用参数：

外形尺寸:长:134mm 宽:67mm 高:61mm 总高:66mm

不同放电率实际容量

20小时率:3.2Ah

10小时率：3.07Ah

5小时率：2.74Ah

1小时率：1.98Ah

15分钟率：1.27Ah

Dimensions: Length :134mm width :67mm height :61mm Total height :66mm

Actual capacity at different discharge rates

20 hours rate :3.2Ah

10-hour rate: 3.07Ah

5 hour rate: 2.74Ah

1 hour rate: 1.98Ah

15 minutes rate: 1.27Ah

容量与温度的关系（20小时率）

40(104)：103%

25(77)：100%

0(32)：86%

－15(5)：65%

在25(77)时完全充电的内阻：约59m

充电方法（恒压）

循环：最大充电电流为825mA

充电电压14.5-15.0V/12V77(25)

充电电压14.5-15.0V/12V77(25)

Relationship between capacity and temperature (20 h rate)

40 (104) : 103%

25 (77) : 100%

0 (32) : 86%

15 (5) : 65%

Internal resistance to full charge at 25(77) : approx. 59m

Charging method (constant voltage)

Circulation: the maximum charging current is 825mA

Charging voltage 14.5-15.0V/12V77(25)

Charging voltage 14.5-15.0V/12V77(25)
