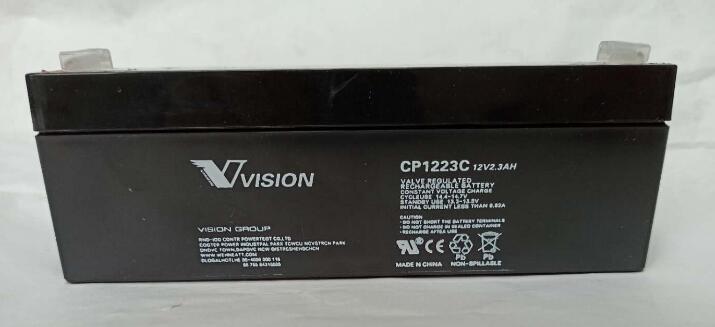

VISION威神蓄电池CP1223充放电参数

VISION威神蓄电池CP1223 12V2.3Ah充放电使用参数

外形尺寸:长:1781mm 宽:351mm 高:611mm 总高:661mm

不同放电率实际容量

20小时率:2.3Ah

10小时率：2.164Ah

5小时率：1.94Ah

1小时率：1.38Ah

15分钟率：0.94Ah

Dimensions: Length :1781mm width :351mm height :611mm Total height :661mm

Actual capacity at different discharge rates

20 hours rate :2.3Ah

10-hour rate: 2.164Ah

5 hour rate: 1.94Ah

1 hour rate: 1.38Ah

15 minutes rate: 0.94Ah

容量与温度的关系（20小时率）

40(104)：103%

25(77)：100%

0(32)：86%

－15(5)：65%

在25(77)时完全充电的内阻：约61m

充电方法（恒压）

循环：最大充电电流为575mA

充电电压14.5-15.0V/12V77(25)

Relationship between capacity and temperature (20 h rate)

40 (104) : 103%

25 (77) : 100%

0 (32) : 86%

15 (5) : 65%

Internal resistance at 25(77) for full charge: approx. 61m

Charging method (constant voltage)

Circulation: The maximum charging current is 575mA

Charging voltage 14.5-15.0V/12V77(25)
